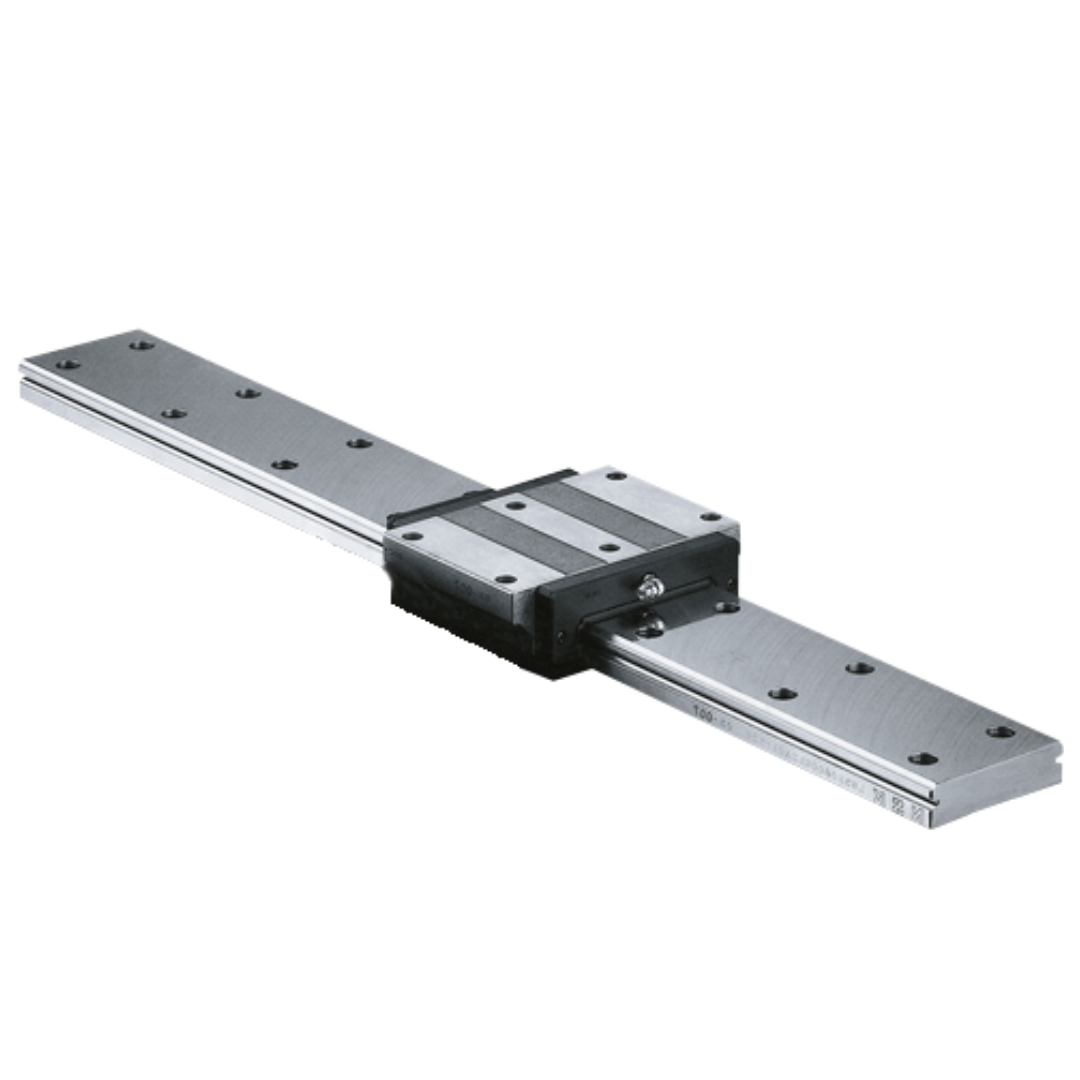

NSK LW Linear Rail and Bearing Assembly. Click to expand image

Size 27 NSK LW Wide Footprint, Low Profile Linear Rail & Bearing Guide Assembly

SKU#:

LW27

The NSK LW Series linear bearing assemblies are designed for single rail applications where a low profile and wide footprint are required. The wide rail design provides high moment load capacity while maintaining a low profile. The offset Gothic arch groove minimizes friction in the rolling design to maximize bearing life while maintaining high load-carrying capacity due to the optimized contact angle of the bearings.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

Select from Quick Ship or Build-to-Order Options

Quick Ship

Readily Available Product

Build to Order

Configure Any Part Number

Estimated Lead Time:1-5 Days

Quick Ship LW27 Products

	Configured Option	Price/unit	QTY in Stock	Order QTY

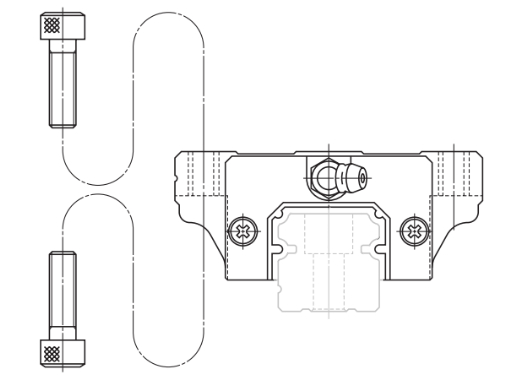

	LW271960EL1PNZ, G1=G2 Details (27)Linear Rail SizeSize 27Size 27 LW Bearing and Rail Assembly (1960)Linear Rail Length1960 mm Long77.165 inches Long (EL)Linear Bearing Carriage ShapeStandard Carriage with Flanged Mounting The carriage will be 51.4mm long and have mounting to the payload from the top down or bottom up. Linear Bearing MaterialHigh Carbon Steel (NSK Standard)Standard NSK design (1)Number of Bearing Carriages Per RailOne Bearing Block1 carriage slider on the rail (PN)Linear Rail Accuracy CodeNormal Grade (Z)Linear Bearing PreloadSlight Preload390 N Preload Bearing K1 OptionNo K1 Lubrication Units on Bearings Bearing Seal Options1 Seal per Slide Bearing Scraper OptionNo Scrapers (, G1=G2)G Reference DimensionReference G Dimensions are EqualThe G1 dimension is equivalent to G2 dimension.	$1,514.43	5
