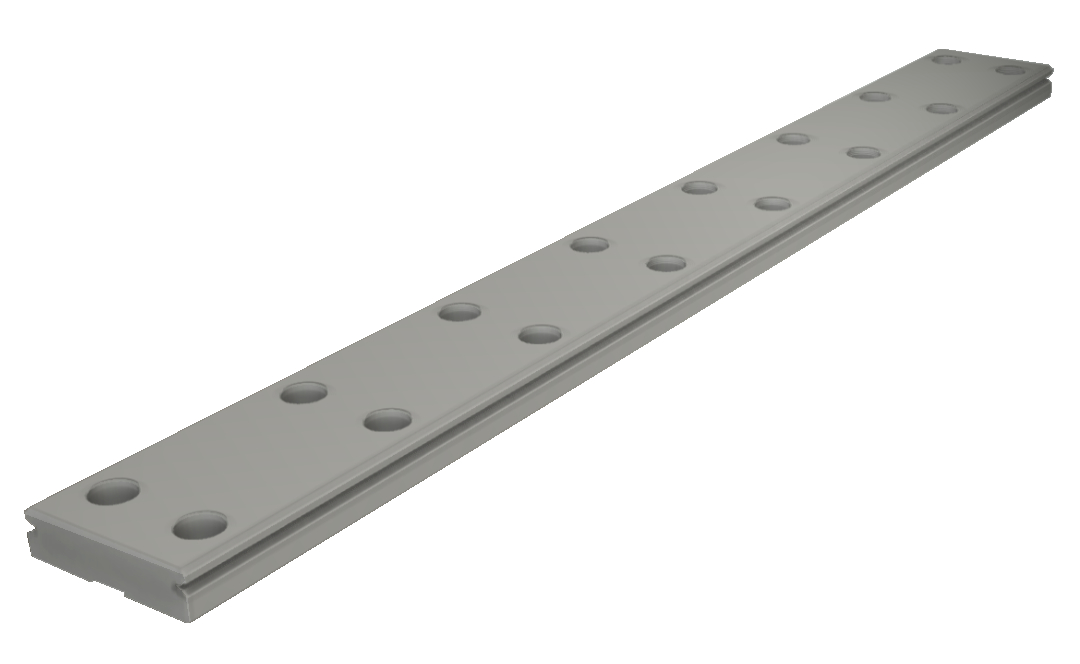

NSK L1W Series Linear Rail. Click to expand image

Size 21 L1W Interchangeable Wide Footprint Low Profile Linear Rail

SKU#:

L1W21

The NSK L1W size 21 linear rail is a low profile, wide footprint, interchangeable, compact, and robust linear bearing rail. The L1W series is best fit for single rail applications or high roll moment loads. The NSK L1W size 21 linear rail is available in carbon steel design with a low profile footprint. Select the right Size 21 LAW bearing block to go with the rail.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

Select from Quick Ship or Build-to-Order Options

Quick Ship

Readily Available Product

Build to Order

Configure Any Part Number

Estimated Lead Time:1-5 Days

Quick Ship L1W21 Products

	Configured Option	Price/unit	QTY in Stock	Order QTY
	L1W211580LCNPCZ, G1=G2 Details (21)Linear Rail SizeSize 21Size 21 L1W rail designed for size 21 LAW bearing block (1580)Linear Rail Length1580 mm Long62.205 inches Long (L)Linear Rail ShapeStandard L1W RailStandard NSK design (C)Linear Rail TreatmentHigh Carbon Steel (NSK Standard)Standard NSK design (N)Linear Rail ButtingNon-butting RailsThe rails will not be specially machined on the ends to allow butt-joint connection to another rail length. (PC)Linear Rail Accuracy CodeNormal GradeInterchangeable series offers PC precision grade only, for higher precision, please see the LW series assemblies. (Z)Linear Bearing PreloadRandom Matching With PreloadInterchangeable series offers the mix and match preload for the rails and bearing blocks. (, G1=G2)G Reference DimensionReference G Dimensions are EqualThe G1 dimension is equivalent to G2 dimension.	$765.11	10
