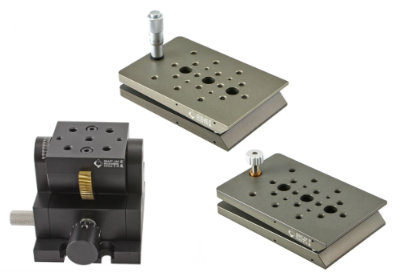

The 05 single axis tilt platform is a high-precision manual tilt platform driven by a micrometer, thumbscrew, or thumbwheel. Tilt platforms are used to precisely position optical elements such as mirrors, lenses, and beamsplitters. The platform can be tilted in one axis only, and the tilt angle resolution offers premium positioning capabilities. The platform is extremely stable, with low vibration and high repeatability. It is an essential tool for any optical alignment application.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

Three-axis tip/tilt and rotation platforms include English or Metric micrometers, or thumbscrew drive mechanisms for easy adjustments. The micrometers or thumbscrews provide ± 4° motion in the α-β and θ directions.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

These two-axis tip/tilt or tip/rotate platforms include English or Metric micrometers, or thumbscrew drive mechanisms for easy adjustments. The micrometers or thumbscrews provide 5° to 9° motion in the α-β or the α-θ directions.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

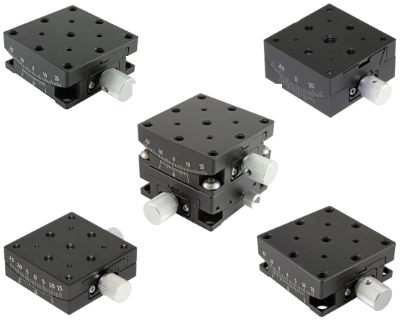

Goniometers are devices that allow for precise angular movement in one or more axes. They are often used in applications where precise positioning is essential, such as in optical and medical devices. Micrometer-driven goniometer stages offer even greater control and accuracy than motorized stages, making them ideal for high-precision applications. These stages can be single-axis or multi-axis, depending on the needs of the application. These manual goniometer stages offer fine angular adjustment via a worm drive and thumbwheel. Our manual goniometers offer 40x40mm or 60x60mm platforms and a locking screw to hold position when needed.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.
