MINIATURE PRECISION STAGES

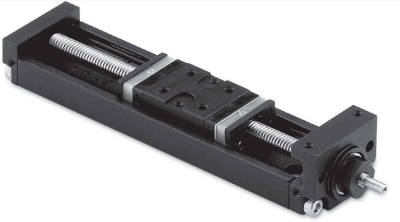

NSK MCM02 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM02, which features a small yet sturdy design ideal for applications with constrained space. The MCM02 Monocarrier has a maximum stroke length of 150 mm and is 28 mm wide with a 1 or 2 mm lead ball screw. The MCM02 Monocarrier has a load capacity of 24.5 kg. It offers a top speed of 100 mm/s and repeatability of ±5µm or ±10µm. Also, the MCM02 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

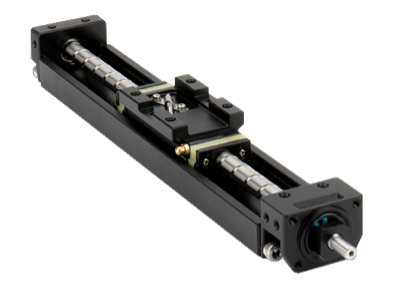

NSK MCM03 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM03, which features a small yet sturdy design ideal for applications with constrained space. The MCM03 Monocarrier has a maximum stroke length of 250 mm and is 34 mm wide with a 1,2,5,10,12, or 15 mm lead ball screw. The MCM03 Monocarrier has a load capacity of 54.3 kg. It offers a top speed of 750 mm/s and repeatability of ±3µm or ±10µm. Also, the MCM03 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

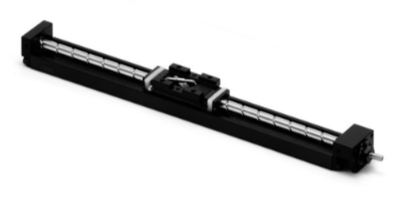

NSK MCM05 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM05, which features a sturdy design with integrated bearings ideal for applications with constrained space. The MCM05 Monocarrier has a maximum stroke length of 600 mm and is 48.6 mm wide with a 5,10,20, or 30 mm lead ball screw. The MCM05 Monocarrier has a load capacity of 132.5 kg. It offers a top speed of 2500 mm/s and repeatability of ±3µm or ±10µm. Also, the MCM05 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

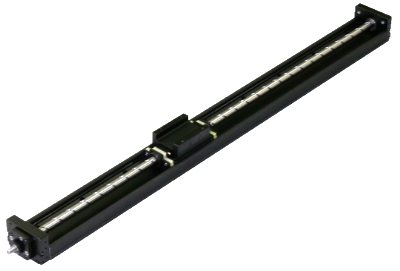

NSK MCM06 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM06, which features a robust design with integrated bearings ideal for applications with constrained space. The MCM06 Monocarrier has a maximum stroke length of 800 mm and is 58 mm wide with a 5,10, or 20 mm lead ball screw. The MCM06 Monocarrier has a load capacity of 214.6 kg. It offers a top speed of 1000 mm/s and repeatability of ±3µm or ±10µm. Also, the MCM06 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

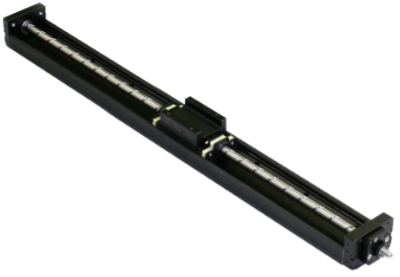

NSK MCM08 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM08, which features a heavy duty design with integrated bearings ideal for applications with constrained space. The MCM08 Monocarrier has a maximum stroke length of 800 mm and is 80 mm wide with a 5,10, 20, or 30 mm lead ball screw. The MCM08 Monocarrier has a load capacity of 262.4 kg. It offers a top speed of 2500 mm/s and repeatability of ±10µm. Also, the MCM08 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

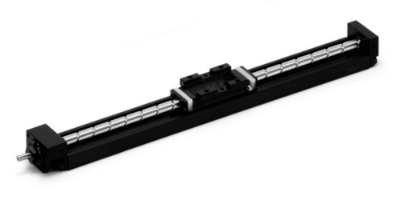

NSK MCM10 Monocarrier Linear Actuator

There are many sizes of the NSK MCM Monocarrier, including the MCM10, which features a heavy duty design with integrated bearings ideal for applications with constrained space. The MCM10 Monocarrier has a maximum stroke length of 1000 mm and is 100 mm wide with a 10, 20, or 30 mm lead ball screw. The MCM10 Monocarrier has a load capacity of 359.5 kg. It offers a top speed of 2500 mm/s and repeatability of ±10µm. Also, the MCM10 has NSK's exclusive K1 lubrication unit, which enables long-lasting and upkeep-free running.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

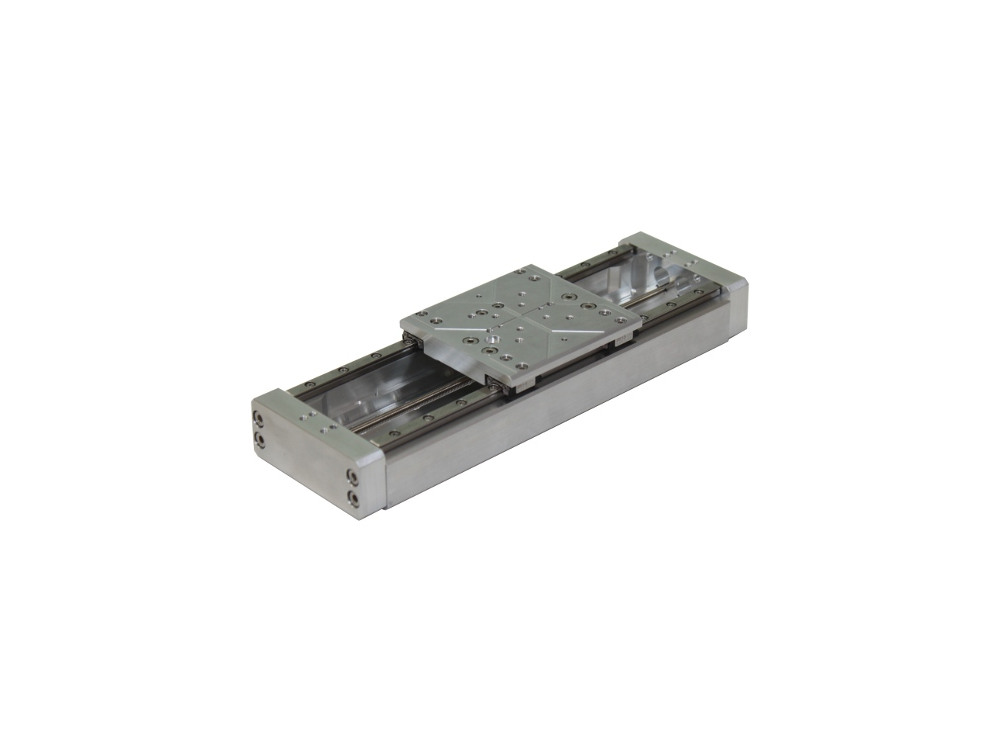

Micronix PPS60-1 Piezo Driven Linear Positioner

PPS-60 - Precision Miniature Screw, Linear Motor, or Piezo Driven Positioner

The PPS-60 is a high-precision, miniature linear stage capable of travel length to 300 mm and load capacities to 150N. It is offered in linear motor driven, piezo driven and screw driven variants to allow for high blocking force, smooth travel, and zero dither options. Ball bearings assure high stiffness and guiding accuracy. The PPS-60 is available in open-loop or with an external encoder. Closed-loop encoder resolution of 2 nm is achievable. Versions capable of operation in vacuum (10-9 mbar) and/or cryo (77 Kelvin) are available.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

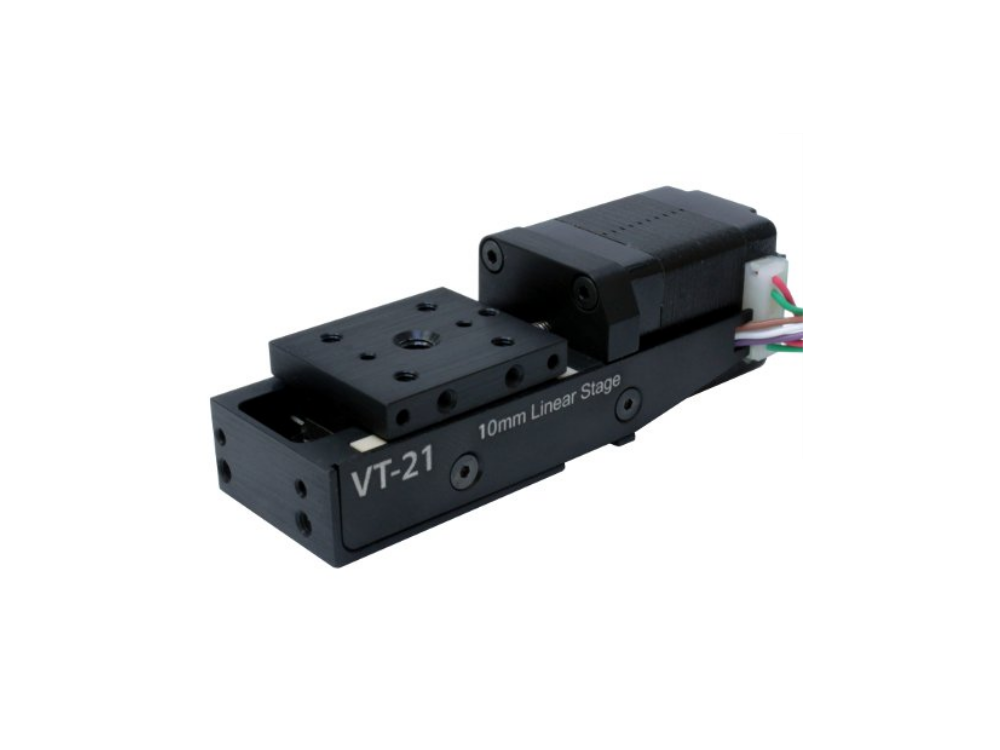

VT-21 - Linear Stage with Stepper Motor

The low-cost VT-21 linear stage excels in applications with very limited space due to its compact design. The stage utilizes a 2-phase stepper motor and is equipped with two mechanical limit switches. A pre-loaded ball slide creates high stiffness and superior performance. The stages can be mounted in XY or XYZ configuration in a space-saving arrangement. Versions capable of operation in vacuum (10-6 mbar) are available.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

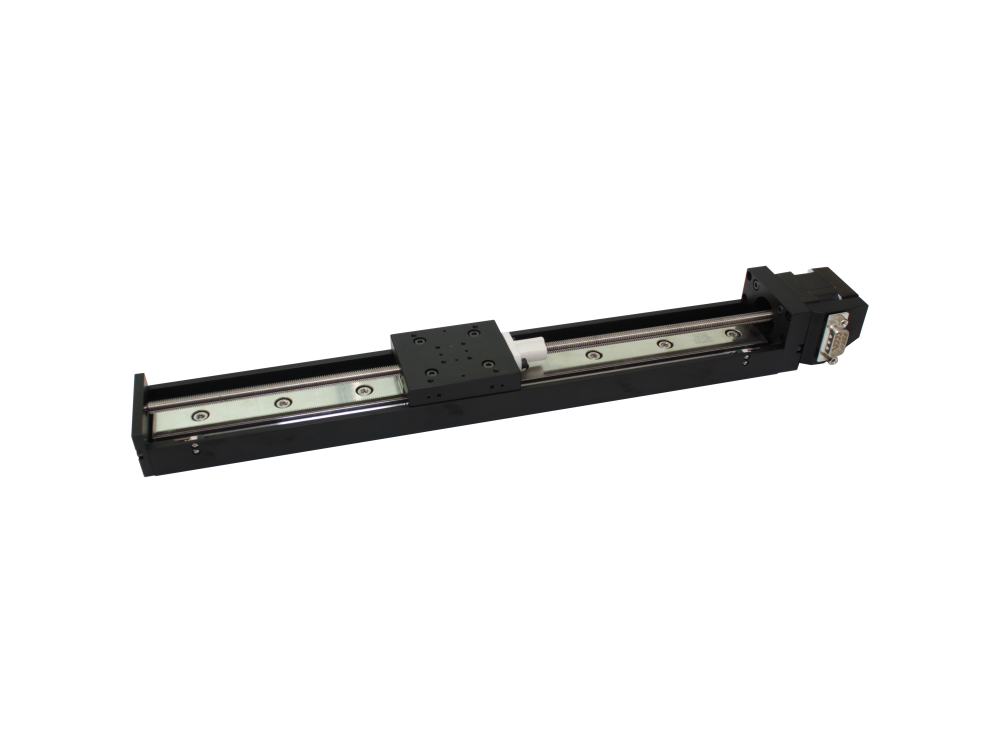

VT-50 - Linear Stage with Stepper Motor

The low-cost VT-50L linear stage excels in applications with very limited space due to its compact design. The stage utilizes a 2-phase stepper motor and is equipped with two mechanical limit switches. Recirculating ball bearing guidance (optional cross-roller bearing) creates high stiffness and superior performance. The VT-50L is available with an optional linear encoder with 0.05 µm resolution. The VT-50L is compatible with the MMC-200 controller.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

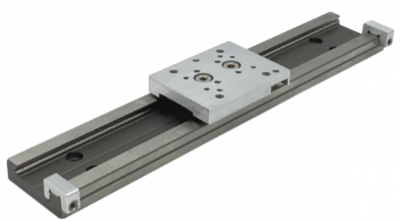

MLS-25 Modular Linear Piezo Stage

The modular linear stage (MLS-25) enables highly flexible and customizable motion system designs. The MLS-25 is fully integrated with a multi-phase piezo motor and an incremental encoder with less than 20nm resolution. Precision stainless steel ball bearing allow for high load capabilities of up to 2kg and offer user adjustable travel lengths up to 236mm. Versions for operation in vacuum (10-6 mbar) are available. The MLS-25 is compatible with MMC-10, MMC-100 , MMC-110 and MMC-Ensemble motion controllers for plug-and-play motion system design.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

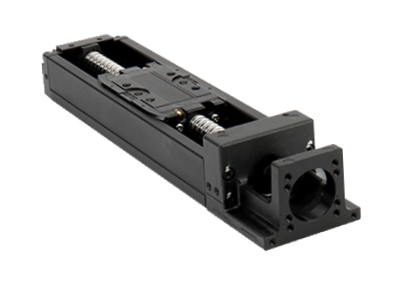

NSK TCH High Performance Toughcarrier Tile

NSK TCH06 High Performance Toughcarrier Monocarrier

The NSK TCH06 roller-bearing toughcarrier monocarrier is a cutting-edge linear motion system that combines the benefits of roller bearings with a robust and versatile design. NSK's TCH06 monocarrier has a high load-carrying capacity, high stiffness, and smooth motion. Because of the roller bearings, the TCH06 has higher loading capabilities or longer service life.higher loading capabilities or longer service life. It is simple to install and maintain, which makes it an excellent choice for a variety of applications in the automotive, aerospace, and industrial sectors. The NSK TCH06 roller-bearing monocarrier establishes new accuracy and durability benchmarks in linear motion technology.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

NSK TCH09 High Performance Toughcarrier Monocarrier

The NSK TCH09 roller-bearing toughcarrier monocarrier is a cutting-edge linear motion system that combines the benefits of roller bearings with a robust and versatile design. NSK's TCH09 monocarrier has a high load-carrying capacity, high stiffness, and smooth motion. Because of the roller bearings, the TCH09 has higher loading capabilities or longer service life. It is simple to install and maintain, which makes it an excellent choice for a variety of applications in the automotive, aerospace, and industrial sectors. The NSK TCH09 roller-bearing monocarrier establishes new accuracy and durability benchmarks in linear motion technology.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

NSK TCH10 High Performance Toughcarrier Monocarrier

The NSK TCH10 roller-bearing toughcarrier monocarrier is a cutting-edge linear motion system that combines the benefits of roller bearings with a robust and versatile design. NSK's TCH10 monocarrier has a high load-carrying capacity, high stiffness, and smooth motion. Because of the roller bearings, the TCH10 has higher loading capabilities or longer service life. It is simple to install and maintain, which makes it an excellent choice for a variety of applications in the automotive, aerospace, and industrial sectors. The NSK TCH10 roller-bearing monocarrier establishes new accuracy and durability benchmarks in linear motion technology.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

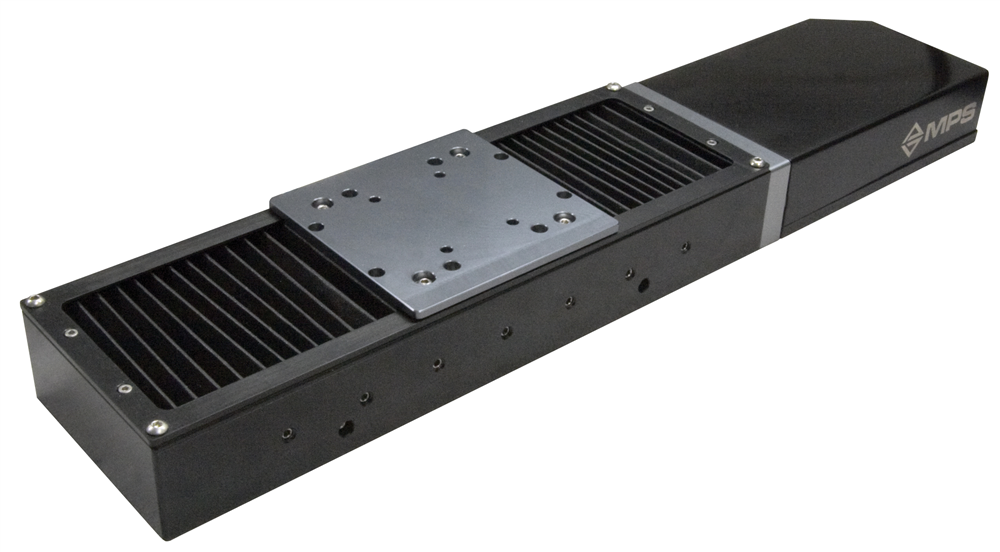

MPS75 - Miniature Screw-Driven Linear Stage

The MPS75 is a compact, high-performance linear positioning stage offering the benefits of direct measurement feedback via a linear encoder. The MPS75SLE is the ideal high-accuracy stage for applications in optics positioning, z-axis positioning of sensors in surface metrology, or high-precision alignment. Multi-axis stage configurations can easily be assembled with other MPS linear and rotary stages using the multitude of adapter brackets and mounting compatibility inherent in the entire MPS stage family.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

PPS-50 - Precision Piezo Driven Positioner

The precision piezo stage PPS-50 allows nanopositioning of high loads. Anti-creep, crossed roller bearings assure high stiffness for loads up to 20N. The PPS-50 is fully integrated with our patented multi-phase piezo motor and optional high resolution encoder (up to 1nm resolution) or absolute encoder. PPS-50 can also be combined with our rotary and gonio stages for ultimate motion flexibility. The PPS-50 is compatible with MMC-100 and MMC-110 controllers

HAVE AN APPLICATION OR A PART NUMBER YOU NEED PRICING FOR?

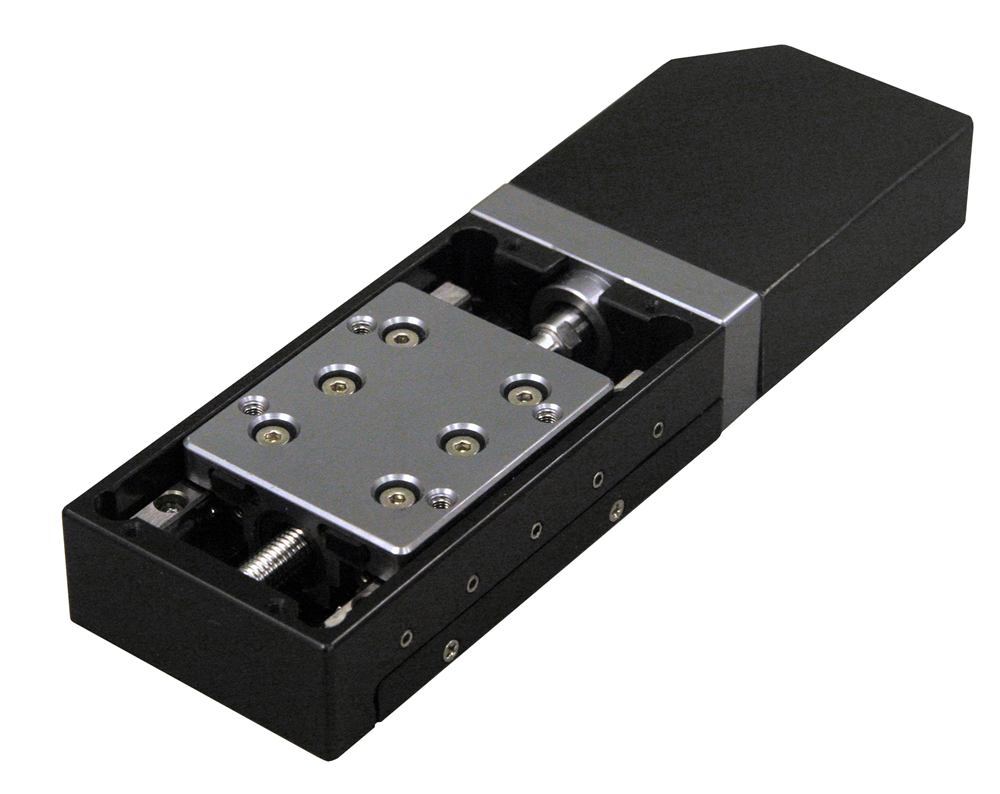

Aerotech MPS50 Miniature Precision Stage

MPS50 - Miniature Screw Driven Linear Stage

The MPS50SL is a compact, high-performance linear positioning stage that is perfect for the confines of the laboratory while providing the high reliability required in a production environment. It is the ideal choice for measurement, testing, accurate alignment, and component assembly in space-constrained applications.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

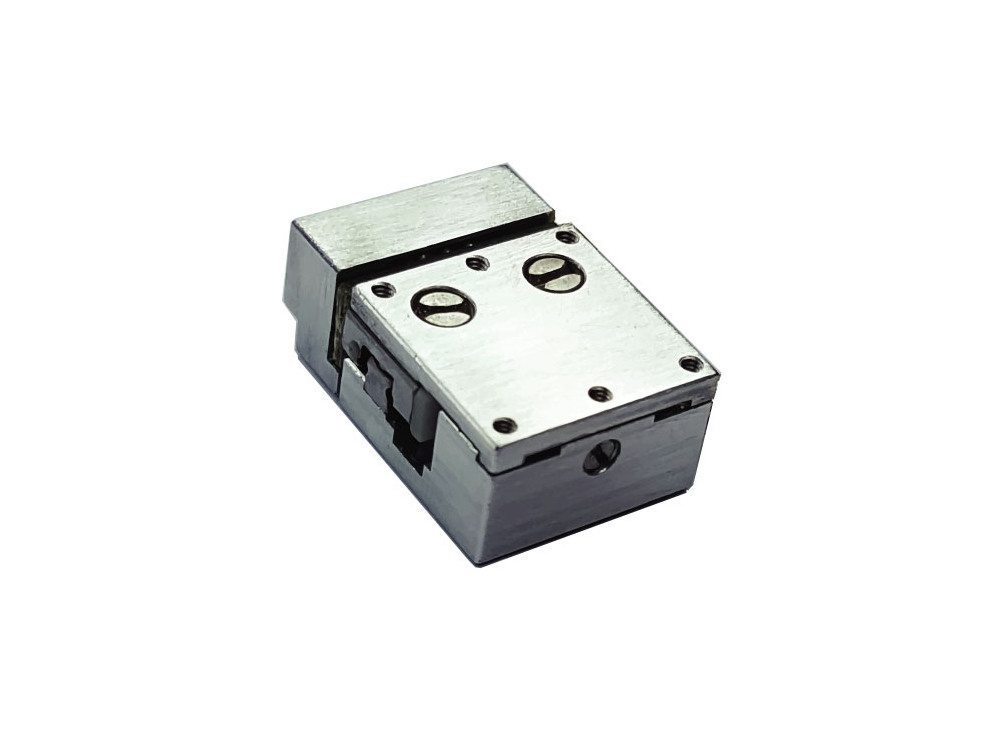

Micronix PP-12 Miniature Piezo Positioning Stage

PP-12 - Ultra Compact Precision Piezo Stage

The PP-12 is an ultra-compact linear piezo stage. Low profile and high load capacity are achieved through the use of a multi-phase piezo motor combined with a ball slide, which allows for smooth travel up to 4 mm. The PP-12 can be directly X-Y mounted without the use of adapter plates. Vacuum versions are available. The PP-12 is compatible with the MMC-100 and MMC-110 controllers.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

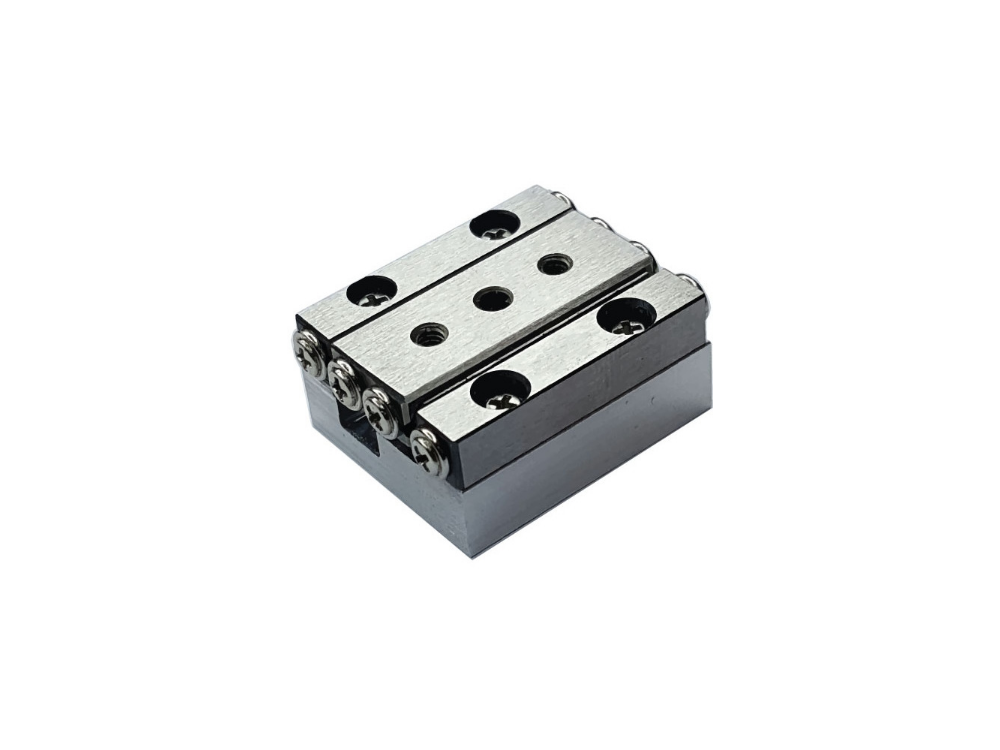

Micronix PP-18 Miniature Precision Piezo Stage

PP-18 - Ultra Compact Precision Piezo Stage

The PP-18 is a low-cost linear piezo stage. Miniature crossed roller bearings assure high stiffness. It utilizes our patent-pending multi-phase piezo motor resulting in high speed (> 2 mm/s) and high blocking force (> 1.5 N). The PP-18 offers travel lengths up to 51mm. The PP-18 is compatible with the MMC-10 low-cost controller.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

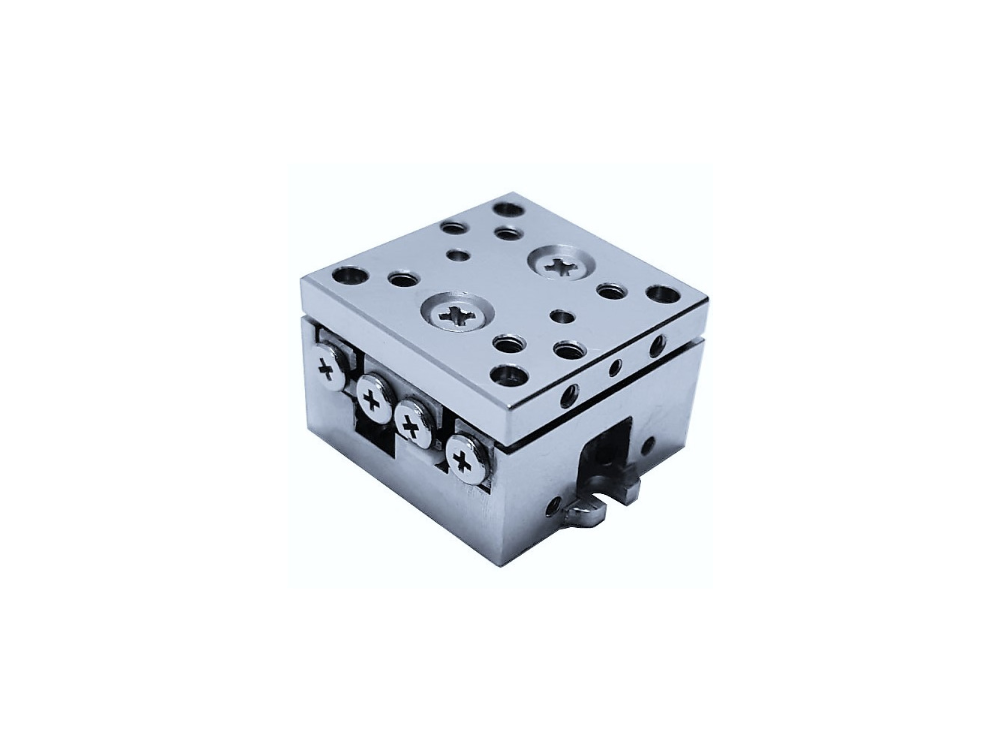

Micronix PPS20-1 Piezo Driven Positioner

PPS-20 - Precision Miniature Screw, Linear Motor, or Piezo Driven Positioner

The PPS-20 is a high-precision, miniature linear stage capable of travel lengths to 51 mm and load capacities to 20N. It is offered in linear motor driven, piezo driven and screw driven variants to allow for high blocking force, smooth travel, and zero dither options. Miniature crossed roller bearings assure high stiffness and guiding accuracy. The PPS-20 is available in open-loop or with an external encoder. Closed-loop encoder resolution of 2 nm is achievable. Versions capable of operation in vacuum (10-9 mbar) and/or cryo (77 Kelvin) are available.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.

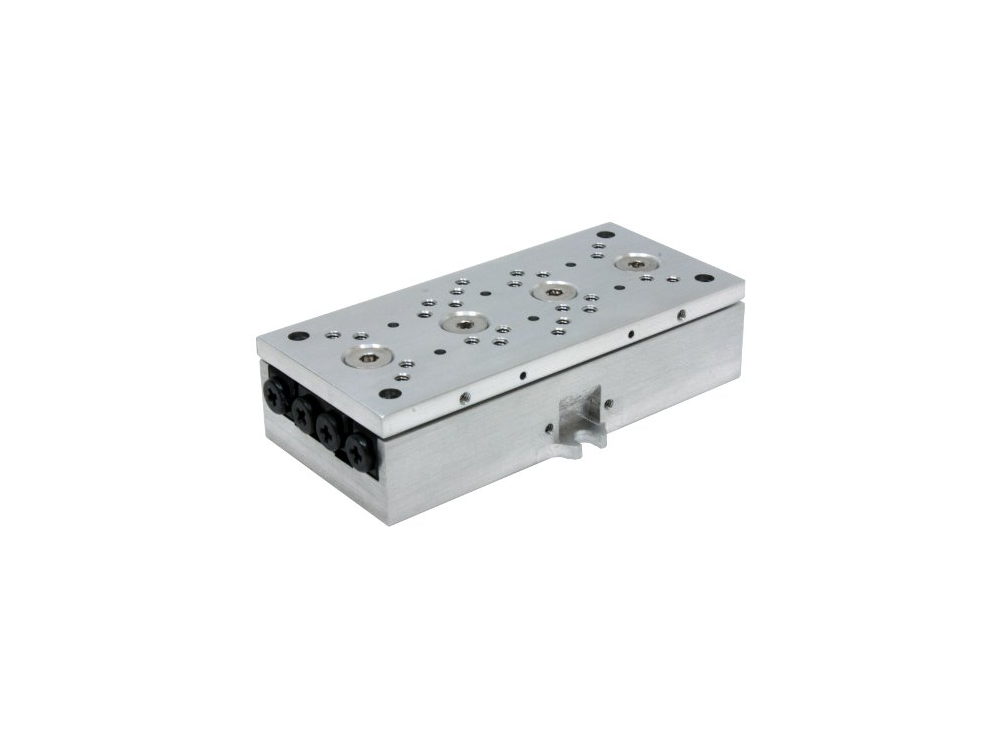

Micronix PPS28-1 Piezo Driven Positioner

PPS-28 - Precision Miniature Screw, Linear Motor, or Piezo Driven Positioner

The PPS-28 is a high-precision, miniature linear stage capable of travel lengths to 102 mm and load capacities to 50N. It is offered in linear motor-driven, piezo-driven, and screw-driven variants to allow for a high blocking force, smooth travel, and zero dither options. Miniature crossed roller bearings assure high stiffness and guiding accuracy. The PPS-28 is available in an open-loop version or with an external encoder. A closed-loop encoder resolution of 2 nm is possible. Versions capable of operation in vacuum (10-9 mbar) and/or cryo (77 Kelvin) are available.

FOR BUILD-TO-ORDER PRODUCTS, CONTACT US FOR CURRENT LEAD TIMES.
